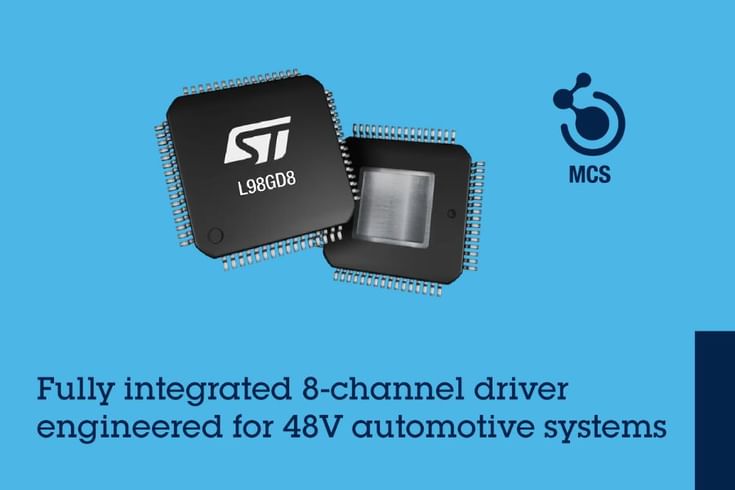

STMicroelectronics has introduced the L98GD8, an eight-channel gate driver designed specifically for 48V automotive power systems. The integrated circuit addresses the automotive industry's shift toward mild-hybrid architectures and enhanced electrical efficiency.
The L98GD8 operates from a 58V supply and features eight fully configurable channels capable of driving MOSFETs in various high-side and low-side configurations. A single driver IC can control MOSFETs configured as individual power switches or as high-side and low-side switches in up to two H-bridges for DC motor applications. The device also supports peak-and-hold control for electrically operated valves.
The 48V powernet architecture enables automakers to expand mild-hybrid system capabilities, including integrated starter-generators and enhanced energy recovery systems. This approach helps manufacturers meet stringent emission testing requirements while powering additional large loads such as e-compressors, pumps, fans, and valves at 48V, which reduces overall vehicle weight and improves electrical efficiency.
Safety and reliability features include per-channel diagnostics for short-circuit to battery, open-load, and short-to-ground faults. The driver incorporates logic built-in self-test capabilities, over- and under-voltage monitoring with hardware self-check, and a configurable communication check watchdog timer.
Additional protection mechanisms include overcurrent sensing with flexible configuration options, drain-source voltage monitoring of external MOSFETs, external shunt resistor voltage monitoring, ultrafast overcurrent shutdown with dual-redundant failsafe pins, battery-undervoltage monitoring, an ADC for battery and die temperature monitoring, and H-bridge current limiting. The programmable gate current feature helps engineers minimize MOSFET switching noise to meet electromagnetic compatibility regulations.
The L98GD8 is currently in production in a 10mm x 10mm TQFP64 package. Budgetary pricing begins at $3.94 for orders of 1,000 pieces. The device is automotive-qualified and designed to meet industry safety and reliability standards.
