Marelli launches next-gen digital front-lighting with 20,000 LED pixels per lamp

Compact, efficient and affordable, high-resolution projection module, which is based on a matrix illumination system featuring around 40,000 LED pixels (20,000 per lamp), is already in series production.

Autocar Pro News Desk By Autocar Pro News Desk calendar 19 Jul 2023 Views icon5400 Views Share - Share to Facebook Share to Twitter Share to LinkedIn Share to Whatsapp
Marelli launches next-gen digital front-lighting with 20,000 LED pixels per lamp

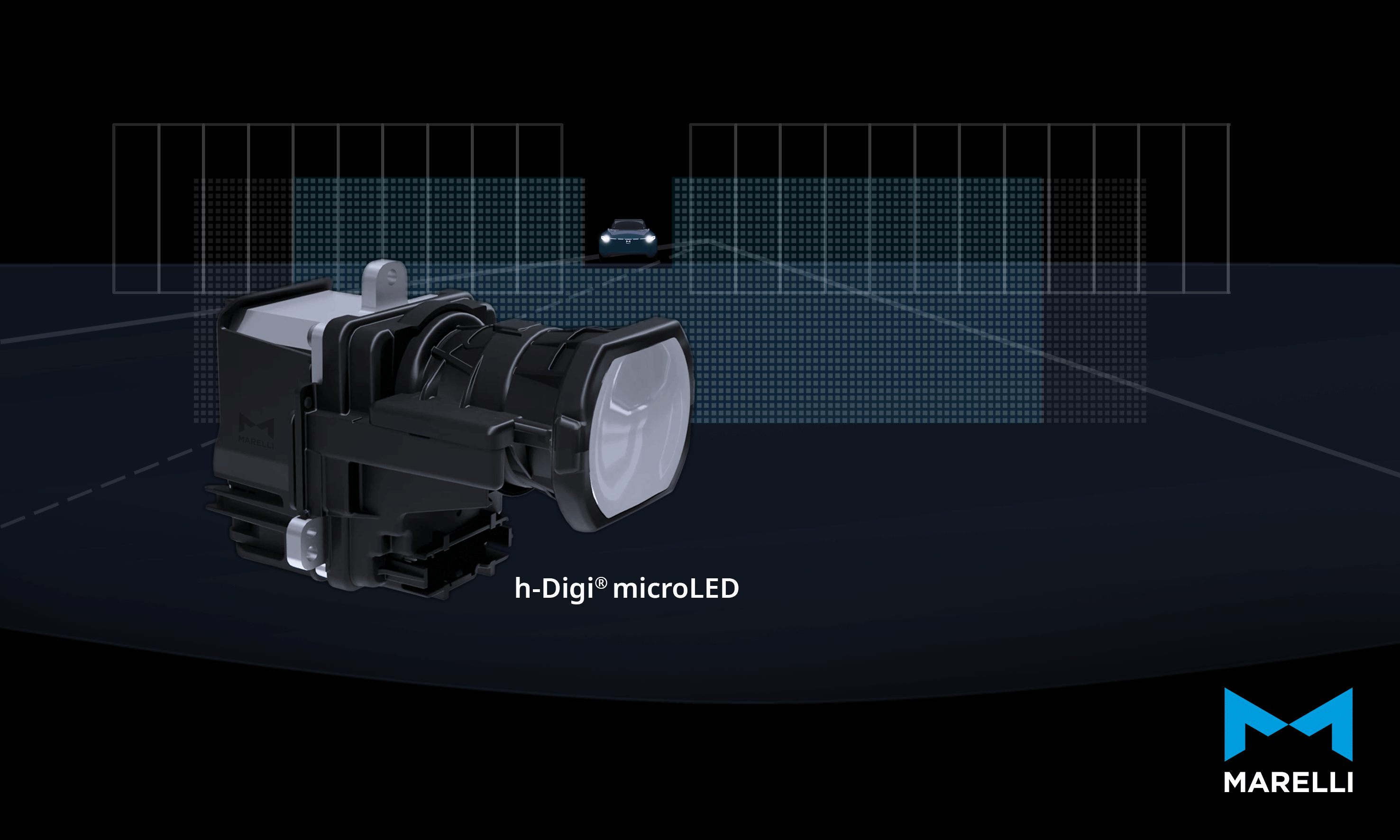

Marelli, together with ams OSRAM has launched a ground-breaking innovation in automotive front lighting. Called h-Digi microLED module, it is now in series production. This digital lighting solution, based on a new type of intelligent multipixel LED, enables fully adaptive, dynamic headlight operation and image projection, while being an affordable technology, available for a wider range of vehicles.

The new high-resolution module h-Digi microLED is based on a matrix illumination system – featuring around 40,000 LED pixels (20,000 per lamp). This intelligent solution manages the LEDs selectively to create very flexible low-beam and high-beam light distributions, adapting to various driving situations: Town, Country, Motorway or Adverse weather light options can be realized. It also provides dynamic curve light and very precise glare-free high beam block out zones, to avoid blinding oncoming drivers. Furthermore, in terms of safety, the Marelli h-Digi microLED can project warnings or driver assistance images on the road, directly in the driver’s field of view. Other advantages include the extremely compact design and high energy efficiency.

The Marelli microLED system is based on ams OSRAM’s light source EVIYOS 2.0. Its combination with a special optical lens system and a new electronic control engineered by Marelli’s Automotive Lighting & Sensing division, enables the enhanced level of adaptability of the illumination field. This is the first time that LEDs with a size of 40 µm x 40 µm are introduced as pixel elements in vehicle headlamps.

Ten times more precise



With pixels smaller than 0,1 degree, the resolution of this illumination matrix system is 10 times more precise than conventional LED glare-free high beam systems, which are currently on the road. Two micro-LED options are available: an aspect ratio of 1:4, resulting in 25,600 pixels, or an aspect ratio of 1:3, providing 19,200 pixels per lamp.

Didier Thalgott, Senior VP at Marelli’s Automotive Lighting & Sensing division, said: “The h-Digi microLED platform module, based on the ams OSRAM EVIYOS® 2.0, enables us to develop solutions for global carmakers providing more safety and comfort for drivers at night. In addition, thanks to its compactness, improved power consumption and affordable pricing, the system opens doors to applying the technology also in mid-level car segments.”

Wolfgang Lex, Senior Vice President Automotive at ams OSRAM, said: ”High-resolution adaptive forward lighting is set to become the next big differentiator for vehicles from the world’s premium brands. EVIYOS 2.0 is the enabler of the most precisely controllable forward lighting systems, and is a major new value creator for the automotive industry. We are excited to be working with Marelli to co-create the future of automotive mobility and enhance the driver safety and experience.”
