Lanxess develops concept radar sensor with integrated thermal management

Combination of thermally conductive plastics with metallic cooling elements in hybrid technology; screwless assembly thanks to integrated fasteners

Autocar Pro News Desk By Autocar Pro News Desk calendar 08 Sep 2021 Views icon4832 Views Share - Share to Facebook Share to Twitter Share to LinkedIn Share to Whatsapp

Lanxess, one of the leading suppliers of thermoplastic high-performance polymers, has developed a new concept for radar sensors with integrated thermal management that will benefit autonomous driving.

Though there is still a long way to go, driver assistance systems are increasingly set to become a key feature of future generations of cars. 360-degree monitoring of the vehicle’s surroundings is enabled by – among other things – radar waves. The radar sensors are an essential component of, for example, distance control, lane change monitoring, collision avoidance and blind spot monitoring systems.

The sensors have to be dust- and water-proof and are designed as fully enclosed systems. But this makes it difficult for heat to be effectively dissipated from the inside, which, in turn, can impair the performance of the electronics and durability of the sensors.

“This is why we developed a concept that allows heat to be dissipated by means of thermally conductive plastics in combination with metallic cooling elements,” says Gregor Jaschkewitz, application developer in the High Performance Materials (HPM) business unit at Lanxess. “The individual sensor components are assembled using integrated snap fits and hot rivets, a process that is much less costly and time-consuming than using screws.”

Small number of components

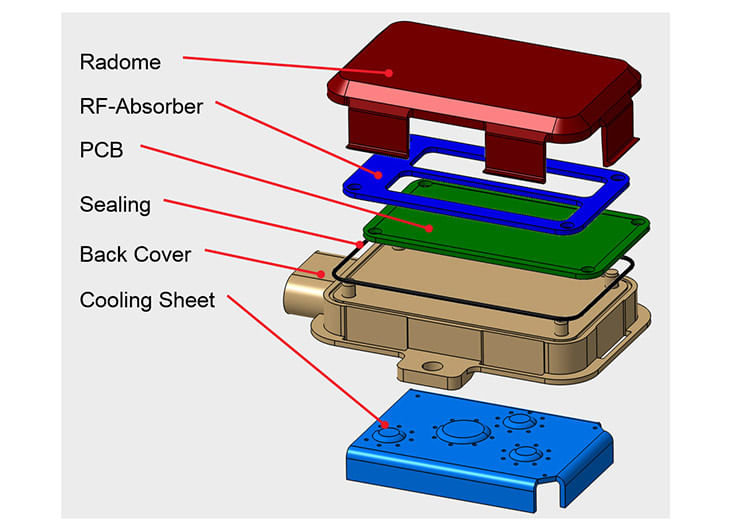

For a radar sensor, this new concept involves the following individual components: a front cover (‘radome’), radar absorber, PCB – including antennas – and back cover with an integrated cooling element. The radome faces away from the vehicle and has to be made from a plastic offering a high degree of transmission for the radar waves. Polybutylene terephthalate (PBT) is a well suited material here because it has a low dielectric constant (Dk) and loss factor (Df).

Functional integration

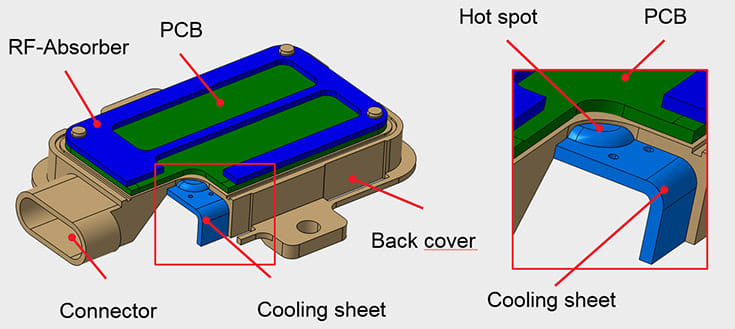

The back cover is the most complex part of the whole assembly. It is manufactured in a plastic-metal compound (hybrid) technique with polyamide 6 and a metallic cooling element. This enables engineers to leverage the huge design freedom offered by the injection moulding process, allowing them to integrate features such as reinforcement and cooling ribs as well as slots for connectors and the strain-relieved attachment of cables. Most importantly of all, however, the surface of the metallic cooling element can be overmoulded with thin areas of plastic.

“The heat generated on the electronic components of the PCB can be efficiently dissipated from the whole assembly through these plastic areas. This effect is supported by thermally conductive polyamide 6 from our Durethan BTC product range as injection molding material,” says Jaschkewitz. Polyamide 6 is also extremely tough and ductile. Another benefit of the hybrid design is that the metallic cooling element shields the electronics inside the radar sensor against electromagnetic radiation, which means that its function is not impaired by external radiation.

The assembly can be sealed with O-rings or sealing lips created in a two-component injection moulding process.

With most concepts for plastic radar sensors, the radome and back cover have always traditionally been made from thermoplastics that can be welded to each other to create a fully enclosed assembly. This generally meant that the same plastics had to be used for joining the two components. “Our approach, however, places fewer restrictions on the choice of materials and makes it easier to use tailor-made compounds,” says Jaschkewitz.
