Tech Talk: Why manufacturers are opting for straight-six engine again

Unlike a four, straight-six engines don’t need balancer shafts to be virtually vibration free.

By Jesse Crosse, Autocar UK calendar 29 Sep 2020 Views icon4172 Views Share - Share to Facebook Share to Twitter Share to LinkedIn Share to Whatsapp
Tech Talk:  Why manufacturers are opting for straight-six engine again

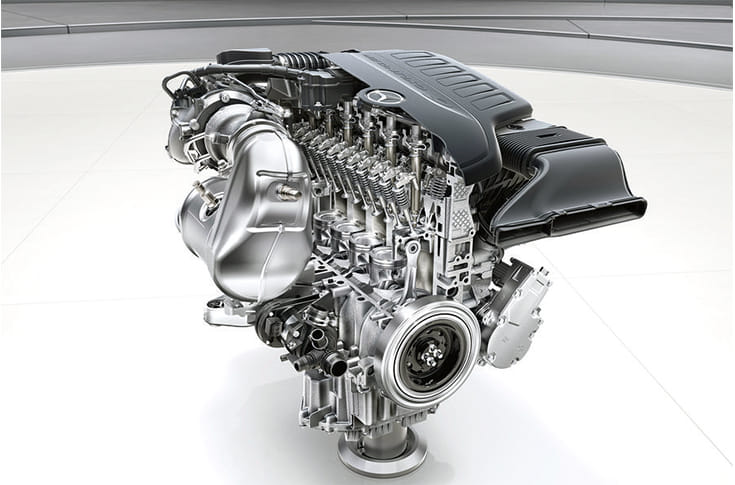

There's something about a straight-six engine, with that intoxicating soundtrack and silky-smooth power delivery. Yet for a time, it looked as though they would disappear from the radar to be replaced by vee engines. BMW even substituted a V8 for the M3’s sublime 3.2-litre six for a time. Now manufacturers are embracing the inline six once again and, ironically, one of the reasons for that is why they gave way to V6s in the first place: packaging.

First, though, why is the straight six such a desirable configuration for an internal combustion engine, regardless of the fuel type? The clue lies in that silky smoothness. Vibration is caused by reciprocating parts, like pistons, and things that rotate, like the flywheel or crankshaft. Engine balance is fiendishly complex but the two main types of vibration are primary ones, which have an even frequency in sync with the engine revs, and secondary. Primary vibrations are caused by the inertia of the pistons moving up and down at a manic rate and the force of combustion. Secondary vibrations are more complex, uneven and essentially caused by the internal geometry of an engine, which means pistons accelerate faster in the top half of the stroke than the bottom half.

The configuration of the engine makes a big difference to both types of imbalance. In an inline four with pistons connected to the crankshaft at 180deg intervals, when pistons one and four are travelling upwards then two and three are moving downwards. The power strokes don’t overlap and there’s a primary imbalance and a high secondary imbalance. In a straight-six engine, pistons are connected to the crankshaft at 120deg intervals, power strokes overlap and each piston has a twin moving in the opposite direction, cancelling out imbalance. So, although there’s still some secondary imbalance, primary balance is perfect.

Although lacking the perfect primary balance of straight sixes, 60deg V6s became popular in mainstream cars mainly for packaging reasons. It’s relatively straightforward to mount them transversely for front drive, and when mounted in line, a shorter V6 makes more room for crash structures. Some car makers based V6s on cut-down 90deg V8s but these, too, lacked the inherent smoothness of a straight six. But as turbocharging became more prevalent, packaging considerations gave inline sixes the edge over vee engines.

Inline engines have a hot and a cold side, with an exhaust manifold on one side taking hot gases away and the fuel injection system on the other. Mounted longitudinally, there’s more space on the hot side for single and increasingly common bi-turbo set-ups, e-boosters and managing under-bonnet heat. There’s also more room for fast-emerging technologies such as the belt-driven starter-generators of mild hybrids, which are bulkier than the alternators they replace. Apart from the inherent advantage of smoothness, straight sixes are more economical to make and have a simpler design, with one-cylinder head instead of two, fewer camshafts and less complex induction and exhaust systems.

Tags: BMW,mercedes
