Tech talk: Building the perfect EV battery

From lithium manganese oxide-based systems to lithium nickel manganese cobalt oxide alternatives, manufacturers are constantly tinkering in search of more power and economy

By Jesse Crosse, Autocar UK calendar 20 Jan 2020 Views icon10372 Views Share - Share to Facebook Share to Twitter Share to LinkedIn Share to Whatsapp

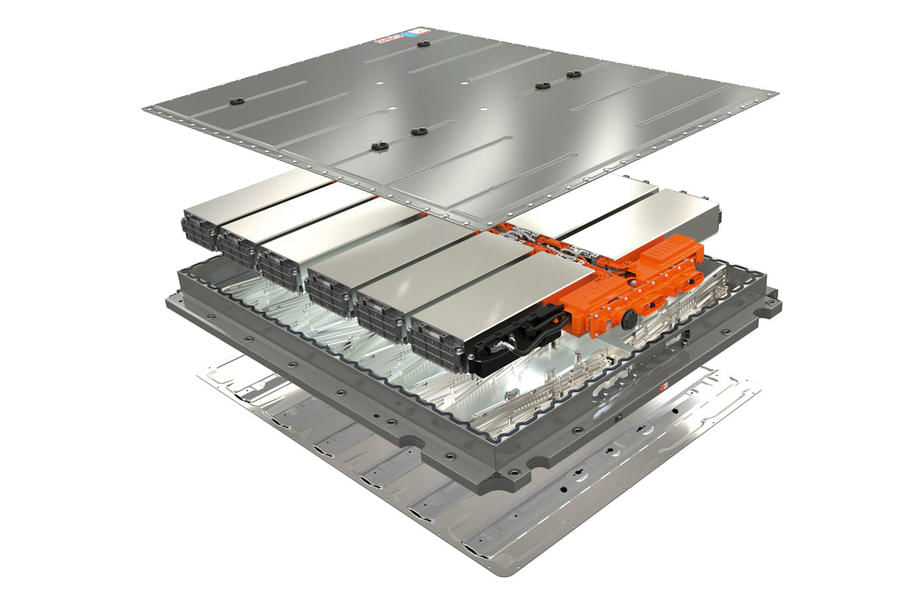

Details of the battery pack for Volkswagen’s ID 3 for 2020 reveal the latest-generation battery cell tech

Details of the battery pack for Volkswagen’s ID 3 for 2020 reveal the latest-generation battery cell tech

Not long ago, big powertrain news involved the launch of new engine plants like JLR’s Engine Manufacturing Centre. Now the attention has switched to battery manufacturing and the best way to produce lithium-ion batteries for EVs.

Some, like Tesla, keep schtum about the precise details, but lithium-ion EV batteries all have the same basic components. Individual cells are arranged into modules that are connected together via a high-voltage connector (busbar) and encased to form a single battery pack. Two other main components are the battery management system, which controls and monitors every aspect of the battery’s performance and behaviour, and the liquid cooling system.

Individual cells work in much the same way, with an anode and cathode separated by a thin polymer layer and surrounded by electrolyte, but those components can be rolled to make cylindrical cells, assembled as a pouch (a bit like cat food) or formed into a prism shape. The chemistries within can be very different, each with pros and cons, and they continue to evolve.

The first-gen Nissan Leaf had a 24kWh lithium manganese oxide battery (LMO). All lithium-ion batteries rely on electronics to prevent uncontrolled overheating, known as thermal runaway, during charge or discharge, but LMO has the benefit of being intrinsically safe at the cost of other factors such as energy density. But the technology has evolved. The BMW i3 and 2019 62kWh Leaf have lithium nickel manganese cobalt oxide (NMC) batteries. These are a favourite choice for anything from power tools to EVs and give the best of most worlds. The Leaf battery is also structured differently, with cells joined by laser welding so Nissan can ring the changes with the configuration of the battery for greater flexibility.

The Volkswagen’s ID 3’s battery pack is a straightforward layout of up to six modules containing 24 cells each, making a 408V pack. Like the Leaf, the VW cells are NMC, but that doesn’t mean they are identical because manufacturers work with cell suppliers to fine-tune the quantities of the main ingredients, playing to the strength of each. Nickel is good for high power density but has poor stability on its own. Manganese is the stable partner and the two are a great combination. Nickel is predominant over cobalt because it’s cheaper. Small amounts of silicon at the anode play a role in boosting energy density.

For 2020, Volkswagen has published details showing the use of a next-generation NMC 811 cathode composed of 80 percent nickel and 10 percent each of manganese and cobalt, with a 20 percent silicon anode.

By tinkering with these ingredients, it’s not inconceivable that one day manufacturers could offer different levels of performance across an EV range rather than just capacity, with the option of ‘GT’ battery packs and powertrains. It’s pure speculation but, much like engines are sometimes mechanically the same today with performance versions mapped to produce a higher power output with reduced economy at a premium price, could batteries one day be configured in a similar way?

Low-carbon fuels vs EVs
A study by Ricardo estimates that by 2050, greenhouse gas emissions (GHG) from cars and light duty vehicles could be reduced by 87 percent if low-carbon liquid fuels were introduced as a substitute for petrol and diesel. The study found the effect would be about equal to a mass roll-out of EVs. The cost to public finance in infrastructure would be a lot lower, though, at about £330 billion (Rs 30 lakh crore) compared with just over £700billion (Rs 64 lakh crore).
