Comfort as an audible experience

New technology in the new Mercedes-Benz CL-Class coupé helps make it the quietest car in the luxury class.

Autocar Pro News DeskBy Autocar Pro News Desk calendar 20 Sep 2006 Views icon2898 Views Share - Share to Facebook Share to Twitter Share to LinkedIn Share to Whatsapp
Comfort as an audible experience
The first-class comfort offered by the new Mercedes-Benz CL-Class is also an audible experience. Thanks to meticulous development work and the most modern testing procedures, the coupé is by far the quietest car in its class.

In addition to the noise configuration and sound insulation of the engine, exhaust system and chassis of the new CL-Class, it is the car’s good aero-acoustics in particular that make it a very quiet driving experience for drivers and passengers. As early as the conceptual phase, Mercedes engineers took pains to ensure that the bodyshell was optimally streamlined so that wind noise was reduced.

It was with this in mind that they designed the airflow-efficient A-pillars, developed a more rigid bodyshell with reinforced outer surfaces and achieved a new sealing concept for the doors, which is acoustically even more efficient than in the preceding model. This exemplary noise insulation is also helped by the side windows, which have a thickness of six millimetres in the new CL-Class coupé.

Many other components were also developed with a view to aero-acoustic efficiency: for example the windscreen wipers, which are positioned very low down, out of the airstream, when not in use. A narrow stem between the exterior mirror housings and the doors also prevents wind noise, and a specially designed rubber seal between the rear window and the boot lid also makes for aero-acoustic efficiency. The tilting/sliding sunroof features serrated wind deflectors whose ridges create designed-in longitudinal air turbulence, thereby reducing thrumming noises when the roof is open.

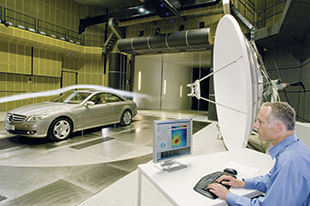

To carry out their aero-acoustic measurements, Mercedes engineers developed a new procedure involving a three-metre parabolic mirror fitted with numerous microphones, which acts as a sound reflector. From a distance of five metres, the microphones at the focal point of the mirror record the noises caused by the airstream as it passes around the vehicle body. While numerous individual measurements were formerly necessary for such analytical procedures, the new parabolic mirror process requires only a single measurement to examine complete areas of the vehicle body, e.g. the A-pillar, exterior mirror, side window and roof.

A video camera makes the area under examination visible on the computer screen. At the same time the system superimposes the wind noises onto the video image as different-coloured areas, depending on the sound volume and frequency. This enables sources of irritating noise and its distribution to be identified and examined. During the development of the new CL-Class this innovative aero-acoustic measuring procedure was supplemented with well-proven artificial head technology: a dummy with an artificial head, whose anatomically accurate auditory passages were equipped with capacitor microphones, was seated behind the steering wheel. These made both spatial sound recordings and precise measurements of sound pressure and frequency possible.

Subsequent evaluation of the test results showed how effective the noise reduction methods were. The acoustically sensitive area at the driver’s head level appears as a dark blue, particularly quiet zone on the computer screen of the parabolic mirror microphone system. At a wind speed of 140kph, the interior noise level in this area is below 66 decibels.


In addition to taking measurements, Mercedes engineers also consider it important to establish how drivers perceive the level of acoustic comfort. This is because some noises which the equipment registers as quiet can in fact be irritating, and compromise comfort on long journeys. They therefore use analytical methods which better reflect human audio-perception and provide key psycho-acoustic information about subjective perception of background noise.

One of these parameters is loudness. This is calculated on the basis of different frequency groups, and is better able to describe how humans perceive loudness. At a wind speed of 140kph, an result of just 19 sone was measured in the new CL-Class. Other criteria for noise comfort include harshness, which predominantly evaluates high frequency noises such as hissing or whistling, and the articulation index. This indicates how easily the car occupants are able to converse during a journey. For example, it is irritating if the airstream creates a continuous, high-frequency rushing sound which makes conversation more difficult.
