igus’s new drylin solution promises plenty

igus has demonstrated a new approach for linear carriages. A clip mechanism enables easy installation and removal from the linear guide in a matter of seconds. The product is slated for a launch in spring 2022

Autocar Pro News Desk By Autocar Pro News Desk calendar 15 Feb 2022 Views icon3003 Views Share - Share to Facebook Share to Twitter Share to LinkedIn Share to Whatsapp
Pic is representational

Pic is representational

igus has demonstrated a new approach for linear carriages. A clip mechanism enables easy installation and removal from the linear guide in a matter of seconds. The product is slated for a launch in spring 2022

Whether building technology, mechanical engineering, industrial handling systems, measuring and testing technology or camera technology,  linear systems are an integral part of everyday life. The principle remains the same: a component, such as a control panel, is installed on a carriage and moves over a linear profile with the aid of a guide system or a rolling guide. Previously, it has only been possible to remove the carriage with some effort. Often only using tools and usually only via the profile ends, provided the installation space permits it.

A design limitation facing tractor manufacturers is a case in point: For example, the demand is for a carriage enabling operators to keep their touch displays in the optimal view position. There is also a requirement for it to be removed easily and safely in one step after finishing work. They can be stored safely, protected from theft, moisture and cold. "Inspired by this need, we developed the linear “carriage-to-go” as part of a design study - a carriage that can be removed from the linear rail without tools and from any position in just one step," explains Michael Hornung, Product Manager drylin Linear and Drive Technology at igus. "In the field of linear technology, this opens up new areas of application."

Intuitive operability ensures fast installation and removal

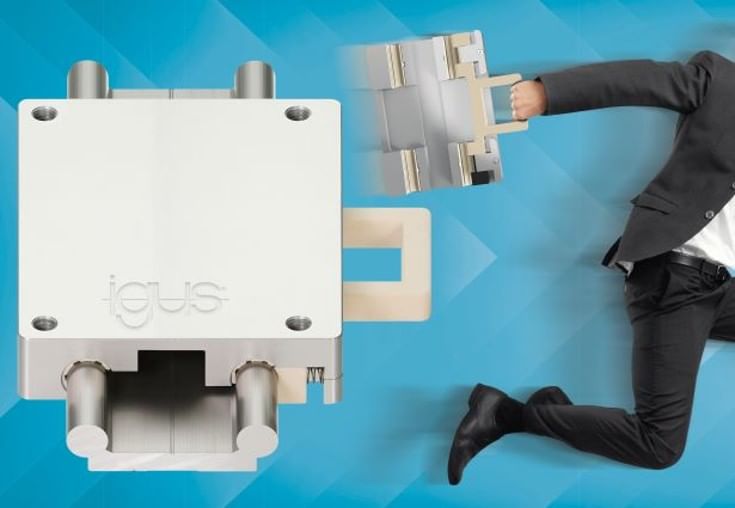

The operation of the clip carriage is simple: the carriage moves on a double profile rail via four lubrication and maintenance-free high-performance plastic slide bearings. If the user pulls a lever on the underside of the carriage, two bearings open via a spring mechanism. The carriage can now be pivoted off the rail and removed. The installation is just as quick. The user places the carriage on the upper rail and clips it onto the lower rail. "Operation is so intuitive that installation is reliable and quick." says Hornung.

The first pilot customers are enthusiastic about the new technology. Among these customers are users of camera systems and measuring and testing technology. One can install cameras and evaluation units on linear guides faster than ever. The design study is, therefore, becoming a product. The market launch is planned for spring 2022.

Expanding drylin W product range

With the new clip carriage, igus is expanding its drylin W product range. At present, there are over 50 different versions of linear guide carriages, which, in combination with other design elements, allow an almost unlimited number of variants. The essential feature of all models is that they enable high accuracy and smooth operation due to the high-performance plastic used in the plain bearings. Moreover, they can be cleaned quickly and thoroughly due to the absence of lubricants.



Tags: Igus
