New Siemens thermal simulation solution addresses autonomous EV design challenges

by Autocar Pro News Desk , 20 Sep 2018

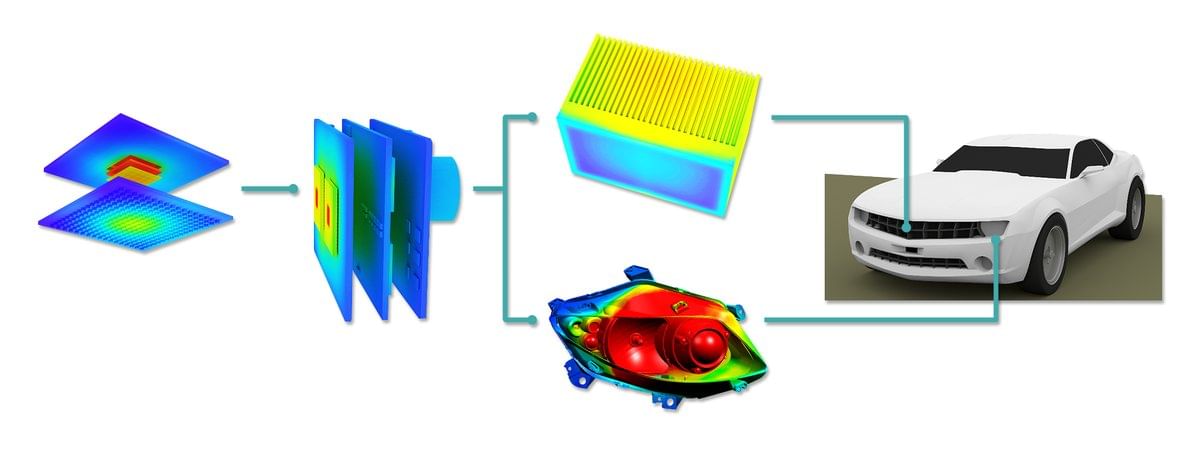

Successful AEV design requires automotive engineers to simultaneously address a range of interdependent requirements. (Image: Siemens PLM Software/Twitter)

Siemens has introduced a new Simcenter software solution for design-centric thermal simulation of Autonomous Electric Vehicles (AEVs), said to be the industry’s first comprehensive, easy-to-use solution engineered to address critical, thermal-driven challenges associated with AEV design, such as extending electric drive range, optimising in-cabin comfort, designing sensors and ensuring the reliability of all autonomous drive (AD) systems.

“Strategy Analytics expects that the vast majority of self-driving cars will feature electrified powertrains,” said Ian Riches, executive director, Automotive Practice for Strategy Analytics. “The OEMs who distinguish their vehicles with trusted AD performance, long drive range per charge and optimal in-cabin experiences are likely to be the winners in this new era of mobility. Thermal design software such as Siemens’ new Simcenter solution is ideally suited to help OEMs and suppliers differentiate and win in the competitive AEV markets of the future.”

Successful AEV design requires automotive engineers to simultaneously address a range of interdependent requirements. AD functionality must execute safely including sensor fusion boxes and a broad array of sensors. The precise and correct thermal design of these sensors and other AD systems is vital to ensuring safe autonomous drive functionality. However, the thermal and power loads of the vehicle’s high-performance AD systems can reduce electric drive range as much as 35 percent. Similarly, in-cabin passenger comfort requirements and machine driving behavior can significantly impact the vehicle’s electric powertrain energy efficiency and drive range. Efficient, co-dependent thermal design of AD electronics -- from ICs and vehicle integration, to electric powertrain and cabin design -- is necessary to successfully develop AEVs.

Siemens’ new thermal simulation solution, delivered as part of the Simcenter portfolio, is the industry’s first solution specifically designed to help design engineers overcome these challenges. It unleashes the power of information-rich computational fluid dynamics (CFD) technology for mainstream automotive engineers, generating highly accurate thermal digital twin simulations of the powertrain, processors, sensors and other key enabling technologies powering next-generation AEV designs.

Other new capabilities include co-simulation of component thermal and electric powertrain performance, connectivity between simulation of electric motor performance and system simulation for electrical and thermal management, and design space exploration using thermal digital twin models. This Simcenter solution also features seamless connectivity to electronic design automation tools and CAD design platforms, helping engineers to easily account for design co-dependencies across electronic, electrical and mechanical domains from the earliest stages of development.

“Creating successful first-generation AEVs will require the intelligent integration of thermal, mechanical and electrical design – a capability that Siemens is uniquely qualified to deliver,” said Jan Leuridan, senior vice-president of Simulation and Test Solutions at Siemens PLM.

“Our new Simcenter thermal design solution addresses electrification and autonomous vehicle functionality, allowing design teams to create virtual prototypes with ease and accuracy for optimal design efficiency. This new solution provides a significant competitive advantage for our customers who can now design safer, more reliable AEVs with confidence.”

The Siemens solution for design-centric thermal simulation consists of Simcenter FLOEFD software for electronics and electric powertrain thermal simulation within native CAD environment, Simcenter Motorsolve software for electric motor design, and unparalleled component design to 1D system thermal design co-simulation with 1D CFD Simcenter Flomaster software. General availability is planned for October 2018.
