Mahle’s dual-mode hybrid arrangement combines the best features of both series and parallel hybrid architectures
30 Aug 2019 | 9350 Views | By Autocar Professional Bureau
Mahle has developed a new, fully integrated and modular hybrid drive that can be tailored to suit a wide range of vehicle applications. The Mahle Modular Hybrid Powertrain (MMHP) is a fully integrated, plug-in hybrid drive that incorporates a highly efficient 2- or 3-cylinder, turbocharged gasoline engine featuring the latest ...
This is an Autocar Pro Plus article. Subscribe to continue reading.

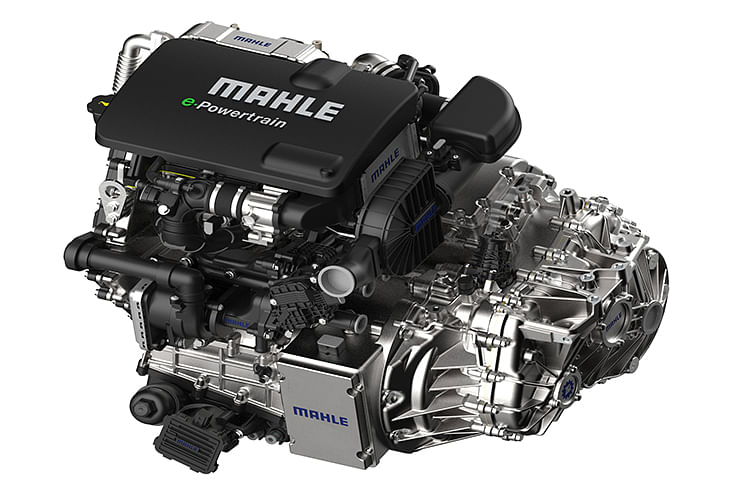

Mahle has developed a new, fully integrated and modular hybrid drive that can be tailored to suit a wide range of vehicle applications. The Mahle Modular Hybrid Powertrain (MMHP) is a fully integrated, plug-in hybrid drive that incorporates a highly efficient 2- or 3-cylinder, turbocharged gasoline engine featuring the latest technologies from Mahle.
The performance of the electric powertrain used in MMHP reduces the requirements for the combustion engine, enabling the development of a cost-optimised ‘Dedicated Hybrid Engine (DHE).’ The engine concept was designed exclusively for hybrid applications and benefits from the latest innovations made with the passive Mahle Jet Ignition (MJI) system. The passive MJI system consists of a small prechamber, which houses a conventional spark plug fitted within the engine’s combustion chamber. It generates hot radical jets, which create a very short combustion event within the engine’s cylinder, thus enabling a high compression ratio and a high exhaust gas recirculation rate, leading to reduced fuel consumption. The use of port fuel injection (PFI), a single overhead camshaft (SOHC) without variable valve timing control, and simple two-valve per cylinder technology serve to minimise the costs.
Dr Martin Berger, director at Mahle Powertrain, Mahle’s Engineering Services business area said, “In order to avoid penalties, vehicle manufacturers must comply with the EU’s legislative target of fleet average CO2 emissions of 59.4 g/km by 2030. Electrification is leading the way as the industry’s chosen technology to achieve this. The advancement of hybrid technology is crucial for the industry as a whole to achieve future emissions targets. As a result of the focus on reduced emissions and strict schedules, new vehicle and technology development must occur within a much tighter timeframe. The MMHP offers vehicle manufacturers a low-cost and quick, off-the-shelf solution, easing the process.’’
The dual-mode hybrid arrangement has been selected for the MMHP, as it combines the best features of both series and parallel hybrid architectures. It allows for flexible vehicle operation, while providing optimal NVH behavior. When battery SOC is high, the vehicle can operate as a pure EV, whereas when SOC is low and at slow driving speeds it can switch to series hybrid mode. At higher vehicle speeds, however, the combustion engine can be connected directly to the wheels in a parallel hybrid arrangement.
Thanks to a gearbox with customisable transmission ratios, the engine can run flexibly at any given vehicle speed. Options for 1-, 2-, and 4-speed transmissions are available, depending on application requirements. As a result, the fully integrated, electric traction motor is directly connected to the wheels at all times, facilitating uniform performance and a dynamic driving experience with uninterrupted torque delivery. The motor can also be designed with different power/torque outputs. Coupled with optimized battery sizing, this allows full scalability of the hybrid powertrain for all applications.
“The modular hybrid powertrain from Mahle features the perfect combination of efficiency, performance, and range without jeopardizing driving pleasure,” concludes Dr. Berger. “The powertrain’s compact size can also help comply with design-related packaging constraints, while the relatively low weight enhances efficiency and performance.”
The hybrid drive is suitable for a variety of applications—from B-segment through to large J-segment SUVs. The engine itself has achieved ultralow specific fuel consumption figures of 207 grams per kilowatt hour in early stage testing. In the future, fuel consumption of around 195 grams per kilowatt hour in lean operation is realistic by using an active MJI system. When applied to a compact crossover SUV, WLTP-weighted CO2 emissions are calculated at 18 grams per kilometer. The weight of the hybrid powertrain is similar to the current 4-cylinder gasoline engine with 6-speed manual transmission. The specially designed combustion engine offers potential cost savings of up to 30 percent.
