Bloodhound SSC – 1600 kph supersonic car to run in October 2017

The Bloodhound SSC supersonic car will make its first land speed record attempt in October 2017 after new funding has put the project back on track.

“This is probably the biggest moment in the Project’s history. Before we could only see financially a few months ahead but now we can put our foot down and really go for it. We’re in this position thanks to the incredible support of our partners and sponsors, and the dedication and sacrifice of many people, including a skeleton crew who have held the fort and quite literally kept the lights on. Most of all it has been the amazing public response that has sustained us. Thousands of children up and down the country are racing Model Rocket Cars and there is tremendous public enthusiasm for the Project wherever we go," said Project Director Richard Noble.

Bloodhound's new partners are due to be announced in the coming months.

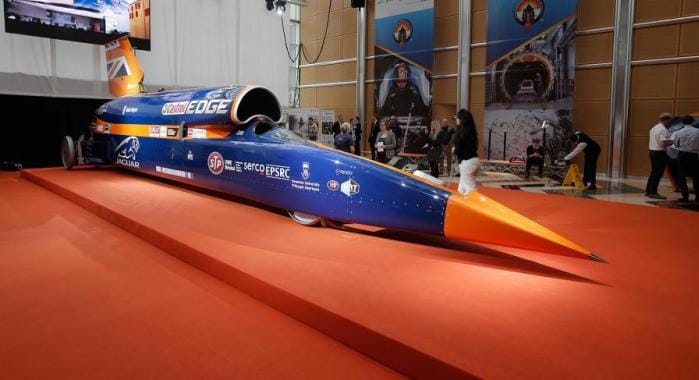

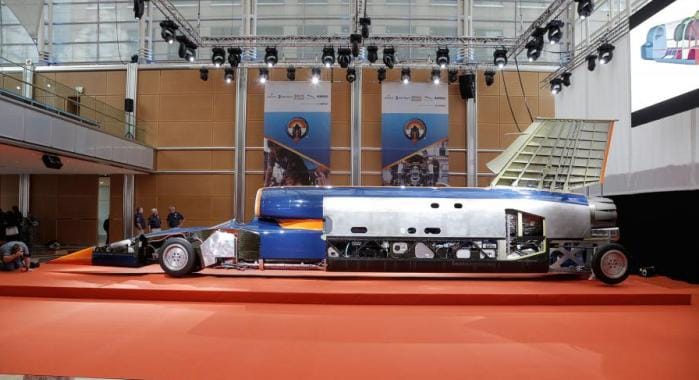

The 13.5-metre-long vehicle will first run as part of a 200 mph/ 320 kph test session in Newquay, before heading to the South African desert with the aim of breaking the current land speed record of 763 mph/ 1230 kph. That run, which aims to take the Bloodhound to 800 mph/ 1290 kph, will also be used to gather data for the car’s headline-grabbing 1000 mph/ 1600 kph record attempt in 2018.

Engines

Power for the Bloodhound comes from three sources – with the primary engine being the same Rolls-Royce EJ200 jet engine that powers the Eurofighter Typhoon. The jet engine will only allow Bloodhound to reach around 650 mph, however, at which point the car’s hybrid rocket will be activated, propelling the car to its first target of 800 mph/ 1290 kph.

Feeding the hybrid rocket with propellant will be Jaguar’s supercharged 5.0-litre V8 engine – the same unit that appears in the F-Type sports car. It’s rated for 550bhp and can pump up to 40 litres of propellant per second; officials say the unit could fill a standard bathtub with propellant in three seconds.

Combined, Bloodhound’s engines have 133,151bhp – the same as 111 Bugatti Veyron Super Sports. The record-breaking 0-1600 kph run is expected to take just 55 seconds, with the full run – including deceleration – taking just over two minutes.

The driver

Driving Bloodhound SSC will be Andy Green, who already holds the current land speed record – having achieved 1230 kph in Thrust SSC in 1997. Bloodhound project director Richard Noble – himself a land speed record holder – says both car and driver have been developed together. “Andy is the only person who’s been supersonic in a car," said Noble. "It is highly spectacular, of course. It’s all about human endeavour and human progress.”

Noble describes stopping Bloodhound as being “the difficult part” of the challenge. “What we have is a low-drag, heavy piece of machinery travelling at 1000 mph, so the kinetic energy is huge," he said. "Stopping it is actually more difficult than getting it up to speed.”

When Green reaches 1000 mph/ 1600 kph, he’ll step off the throttle, allowing the car to slowly come down to around 800 mph/ 1290 kph. Then he’ll activate an airbrake that deploys at a measured rate, putting around 3g of braking force through the car.

Once Bloodhound is travelling at less than 600 mph/ 965 kph, a supersonic parachute – which also acts as a back-up if the main airbrake fails - is deployed, bringing the speed down to 250 mph/ 400 kph. Once there, Green can then activate the car’s wheel brakes to come to a full stop.

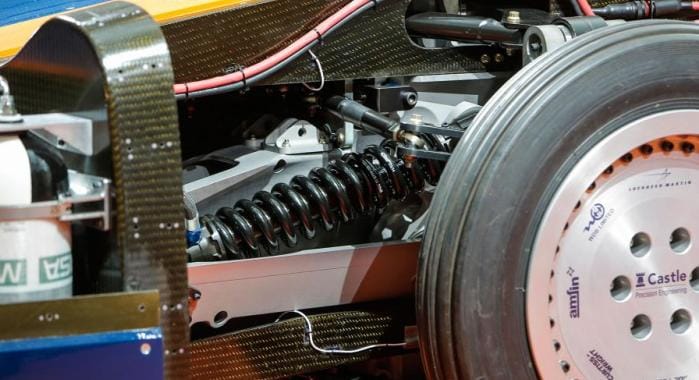

The 36-inch forged wheels will be spinning at up to 10,200rpm during the car’s fastest runs, bringing the possibility of hidden stones being kicked up and into the car’s bodywork at breakneck speeds. To protect Green, composite ballistic panels developed by Morgan Advanced Technologies have been fitted to the car’s cockpit. The panels have already survived a 2000 mph/ 3200 kph ballistics test to prove their integrity.

The record

To successfully break the current land speed record, Green must not only get the Bloodhound to achieve 800 mph/ 1290 kph (and subsequently 1000 mph/ 1600 kph) in one direction but also repeat the feat in the opposite direction within an hour.

Engineer Roland Dennison says the focus of the team waiting for Green at the finish of his run will be on getting the car refuelled for its second journey. “Everyone has to work on it,” he says. “We have to make sure it’s able to run within the hour. We have to change the rocket pack, refuel the 900-litre rocket fuel tank, possibly refuel the jet engine tanks and check all of the car’s systems are working. There’s not much spare time in there.”

In all, the Bloodhound team will spend around three months in the South African desert (most likely sometime later this year), collecting data on the car’s performance and culminating in its first record-breaking run to 800 mph/ 1290 kph. At that point, the car and the team plan to return to the UK to analyse the data and prepare for the 1000 mph/ 1600 kph run.

Having previously identified possible record sites in Australia, Turkey and the US, a 20 km section of the Hakskeen Pan in South Africa was eventually identified as having the right conditions for the record attempt. The site is close to the Verneuk Pan, which was used for Sir Malcolm Campbell’s record attempt in 1929.

First test

The first test of both car and driver will come next Easter when Green will pilot Bloodhound to 200 mph at the Newquay Aerohub. “The first test is very important,” says Noble. “We’re getting to know our car and we’re getting to know how the team will work and maintain the car. It’s important that we get that work done at Newquay before we head to South Africa.

“There’s an enormous amount of research which has gone into this; it’s about 160 man-years' worth. It’s a huge undertaking. You’re developing the car and the driver together."

Safety and education

A key target of the Bloodhound team has been to reach its 1000 mph/ 1600 kph safely. Despite the inherent risks in reaching such speeds, Noble says the record attempt can be done in a controlled way. “The land speed record is one of the safest of all sports; there have been very few fatalities," he said.

“The few that have happened in the 1960s were, of course, spectacular, but back then the teams could not model their cars. In other words, they had no idea what was going to happen. We can model the car and we can compare that data with the research data and know that you’re safe.”

Bloodhound has also set out to inspire the next generation of engineers by visiting schools nationwide and setting up workshops and practical rocket challenges for children.

Project costs

The Bloodhound project will have cost around £45 million (Rs 450 crore) in total by the time its record is set. Around £25 million (Rs 250 crore) of that funding has been spent on getting the car built, with a further £20 million (Rs 200 crore) needed to set the record. Most of the project’s funding has come from sponsorships and technical partnerships.

One of Bloodhound’s chief technical partners has been Jaguar, which is supplying support vehicles as well as the V8 auxiliary power unit. Among the support vehicles is a specially modified Jaguar XJR which will act as a Rapid Response Vehicle. The 543bhp XJR was unveiled at the Goodwood Festival of Speed this summer and features a bespoke fire suppressant system on board. Two of the XJRs – built by Jaguar Land Rover’s Special Vehicle Operations division – will accompany the Bloodhound team to the desert.

A modified version of the F-Type R AWD Coupé has also taken part in a high-speed communications test, as well as helping to test the supersonic parachute system. During the test, the F-Type was driven flat out across South Africa’s Hakskeen Pan desert towards a fighter jet travelling at 500 mph/ 800 kph. The closing speed of close to 700 mph/ 1125 kph allowed the team to test communications equipment.

The Bloodhound car was first revealed in model form in 2010, with the car's innovative rocket system first tested in 2012.

Anatomy of a land speed record attempt

Driver Andy Green will attempt to break the current land speed record of 763 mph in 2016 using Bloodhound SSC. Here’s how he’ll do it.

1 – Green lines up Bloodhound along the 20 km straight in the South African desert. He’ll engage the Rolls-Royce jet engine and slowly leave the start line.

2 – One running, Green will activate the jet engine’s afterburner, effectively dumping more fuel into the engine and dramatically increasing thrust. His speed will quickly increase to around 650 mph/ 1050 kph.

3 – Green will activate Bloodhound’s auxiliary power unit, which takes the form of Jaguar’s supercharged 5.0-litre V8 engine. The engine starts to pump rocket fuel into the rocket, which then engages with the thrust equivalent of around 2.5G.

4 – Now running close to its maximum speed, Bloodhound passes through the six-mile marker of the course, and Green prepares to slow the car down.

5 – Green shuts down Bloodhound’s engines and steps off the accelerator. The car decelerates to around 800 mph/ 1290 kph.

6 – At below 800 mph/ 1290 kph, Green deploys the car’s airbrakes, which immediately provide around 3g of braking force.

7 – Once below 600 mph/ 965 kph, supersonic parachutes are deployed, further slowing the car.

8 – When Bloodhound decelerates to under 250 mph/ 400 kph, Green can then use the car’s wheel brakes to bring Bloodhound to a complete stop. The engineering team then sets about turning the car round and refuelling for its return run.
