ZF and WABCO develop new electronic safety assistant for trucks

In line with its vision of accident-free driving, ZF has enhanced its current assist systems for practical use on the road by developing Highway Driving Assist (HDA) and in cooperation with WABCO, the Evasive Maneuver Assist (EMA). Both have been introduced for the first time in the prototype vehicle ZF Innovation Truck 2016.

EU regulations now require newly registered trucks to be fitted with Electronic Stability Control (ESC), Advanced Emergency Braking Systems (AEBS) and Lane Departure Warning systems (LDW). Evasive Maneuver Assist (EMA) combined with Highway Driving Assist (HDA) utilise advanced sensors to act as the ‘eyes’ of the system, with intelligent control units and physical maneuvering performed by the actuators. These features will help to prevent driving distance errors including tailgating and driving off the road.

Avoidance instead of collision

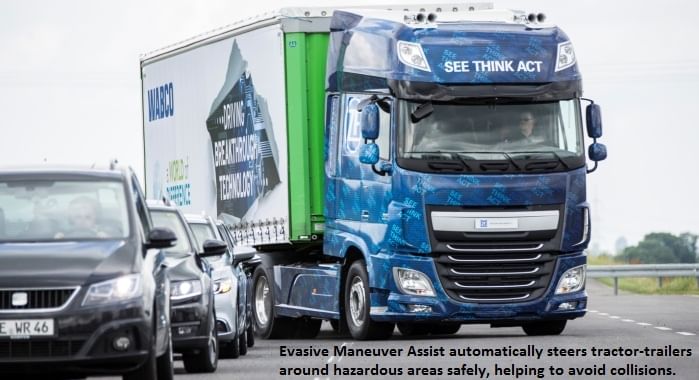

If truckers fail to see road obstacles or to register slowing traffic in time (or not at all), the unique EMA system takes control of the steering wheel – and by inference, control of the ZF electrohydraulic ReAX power steering. The assistant function detects if the AEBS or driver braking is sufficient to enable a stop before hitting the obstacle. If braking is insufficient to avoid a rear-end collision as may be the case on slippery roads or if traffic hazards appear suddenly in blind curves or after hill crests, the EMA directs the truck with its trailer (initiated by the steering motion of the driver to the right or left) independently and safely toward the desired open lane or hard shoulder, even at maximum speed.

“Our innovative function simultaneously evades, brakes and stabilises automatically – at all speeds, with any load in the semi-trailer truck and with any type of semi-trailer. This function helps to avoid rear-end collisions,” says Mitja Schulz, senior vice-president & general manager, Commercial Steering Systems at ZF TRW. “It helps us to come one step closer toward our overriding target, Vision Zero.” With sudden manual avoidance maneuvers, there is always the risk that the driver steers too lightly to avoid the obstruction, causing a truly critical collision with an offset crash. Alternatively, the driver may steer too abruptly, heavily turning in, causing the truck to swerve or even tip over or crossing more than one lane and endangering others – EMA is designed to be able to prevent these scenarios.

EMA combines industry leading technologies of both ZF and WABCO, including ZF’s electrohydraulic ReAX power steering system and WABCO’s Electronic Braking System (EBS), Advanced Emergency Braking, Electronic Stability Control (ESC) and vehicle dynamics control systems. The control logic of WABCO’s automatic OnGuardACTIVE emergency braking system defines when to activate the EMA installed in an in-house ADAS control unit. In Level 1, the system warns the driver acoustically and visually in the display; Level 2 follows by generating haptic signals and moderately decelerating the vehicle by up to 3.5 m/s2. Level 3 ultimately initiates an emergency stop to the stability limit until the vehicle comes to a halt.

The steering system interprets a sudden ‘pulling’ of the steering wheel (response to driver warning) at Level 1, as a command to start the EMA. During automated control, the software constantly calculates the optimal evasion route and adjusts the steering angle accordingly. The software algorithm continuously monitors and compares the calculated and actual steering trajectory. The integrated roll-over protection function in the EMA is adapted for such extreme driving situations. This function is integrated into the ESC system and the lateral acceleration sensor through networking and is a feature in the ZF Innovation Truck 2016. Incidentally, the driver can override the EMA at any time during the autonomous evasive maneuver by simply taking control of the steering wheel, brakes or throttle.

“Evasive Maneuver Assist demonstrates WABCO’s and ZF’s leadership in developing innovative safety technologies for commercial vehicles,” says Dr. Christian Wiehen, Chief Technology Officer from WABCO. “EMA is a safety function combining longitudinal and lateral control, thus categorized as partially automated on the roadmap towards automated driving.”
